Lastline Integration Guide

Syslog notifications must be configured in the Lastline Portal in order to send logs via syslog to the Taegis™ XDR Collector. Please follow the instructions in this guide to enable logging for your sensors.

Connectivity Requirements

Source	Destination	Port/Protocol
Lastline Sensor	XDR Collector (mgmt IP)	UDP/514

Data Provided from Integration

	Normalized Data	Out-of-the-Box Detections	Vendor-Specific Detections
LastLine	Auth	NIDS

Note

XDR detectors are not guaranteed to be triggered, even if a data source's logs are normalized to a schema associated with a given detector. However, you can create Custom Alert Rules to generate alerts based on normalized data from a data source.

Configuration Instructions

Consider the following requirements when completing the configuration steps:

• SIEM Server Location — The IP address of the XDR Collector
• SIEM Server Port — 514
• Protocol — UDP
• Format — LEEF
• Include PCAP — Enabled

To configure logging in the Lastline Portal, please follow these instructions:

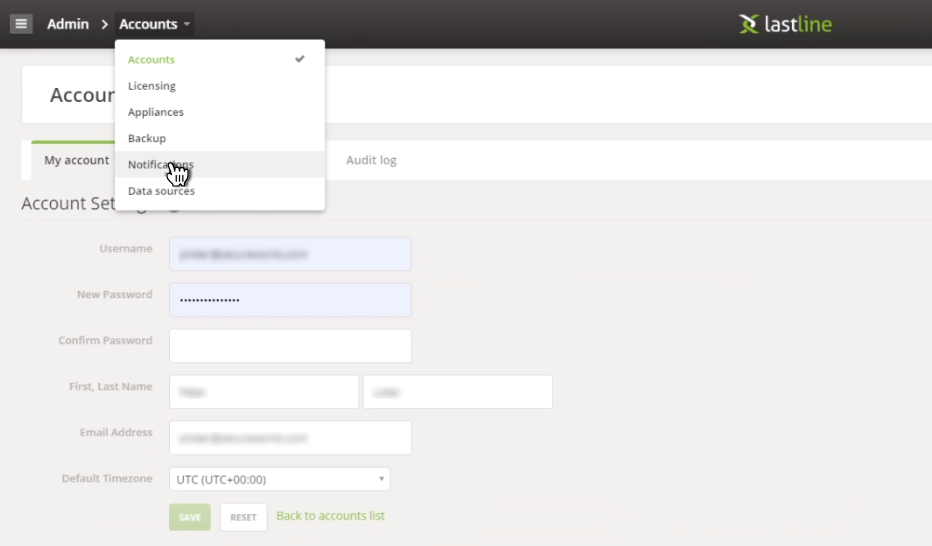

1. In the Lastline Portal, select Admin from the main menu, and then alter your view from Accounts to Notifications.



   Lastline

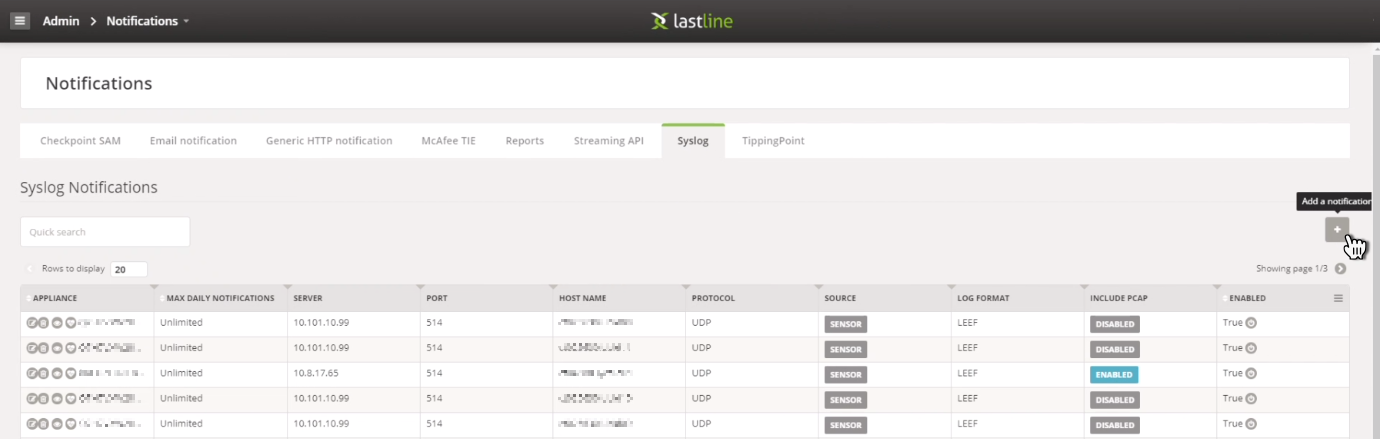

2. On the Notifications page, select Syslog, and then select the + Add a notification icon above the table.



   Lastline

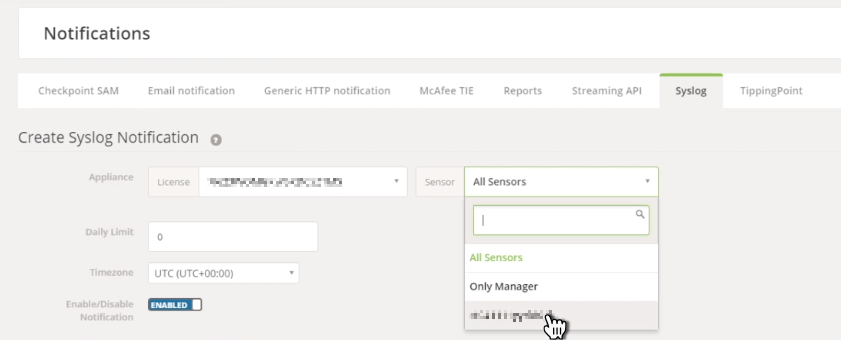

3. In the Create Syslog Notification section, complete the following:

   • Select the License if you have more than one.
   • Select the Sensor for which you would like to set up logging.
   • Leave the remaining standard settings.



   Lastline

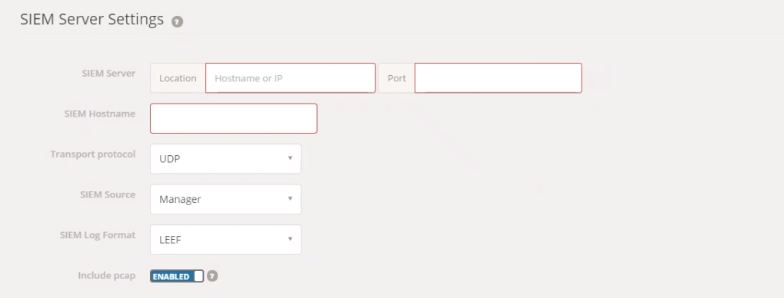

4. In the SIEM Server Settings section, complete the following:

   • SIEM Server Location — Enter the IP address of the XDR Collector.
   • SIEM Server Port — 514
   • SIEM Hostname — Leave blank.
   • Transport protocol — UDP
   • SIEM Source — Select either Manager or Sensor as the originating source, dependent on your network topography.
   • SIEM Log Format — LEEF
   • Include pcap — Enabled



   Lastline

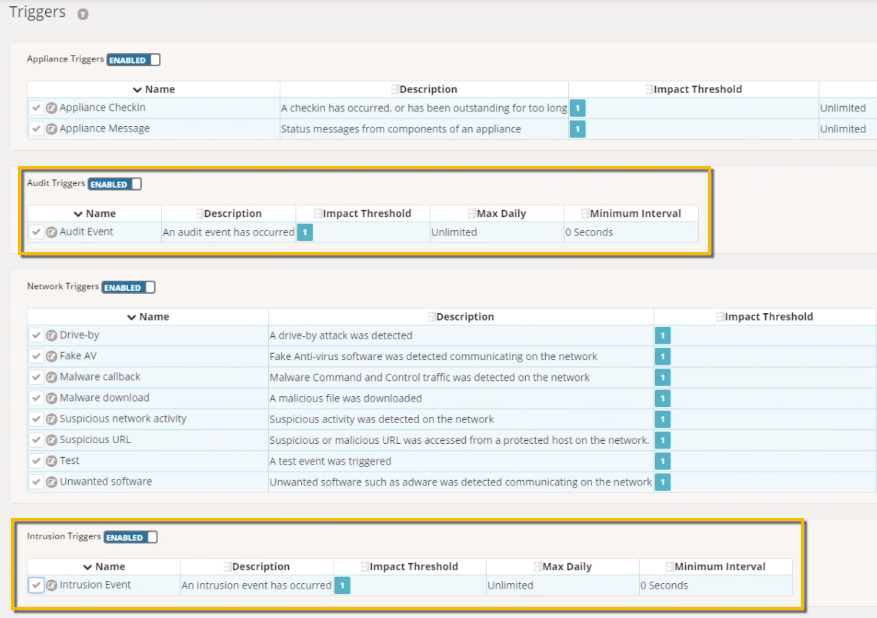

5. In the Triggers section, complete the following:

   • Select the toggle to enable Audit Triggers and then check Audit Event.
   • Select the toggle to enable Intrusion Triggers and then check Intrusion Event.
   • Leave the remaining default settings.



   Lastline

6. Scroll down and select Save. A Syslog Notification Configuration Summary window displays, from which you can choose to Send Test Notification, Edit the configuration, or Close to return to the Syslog Notifications page.
